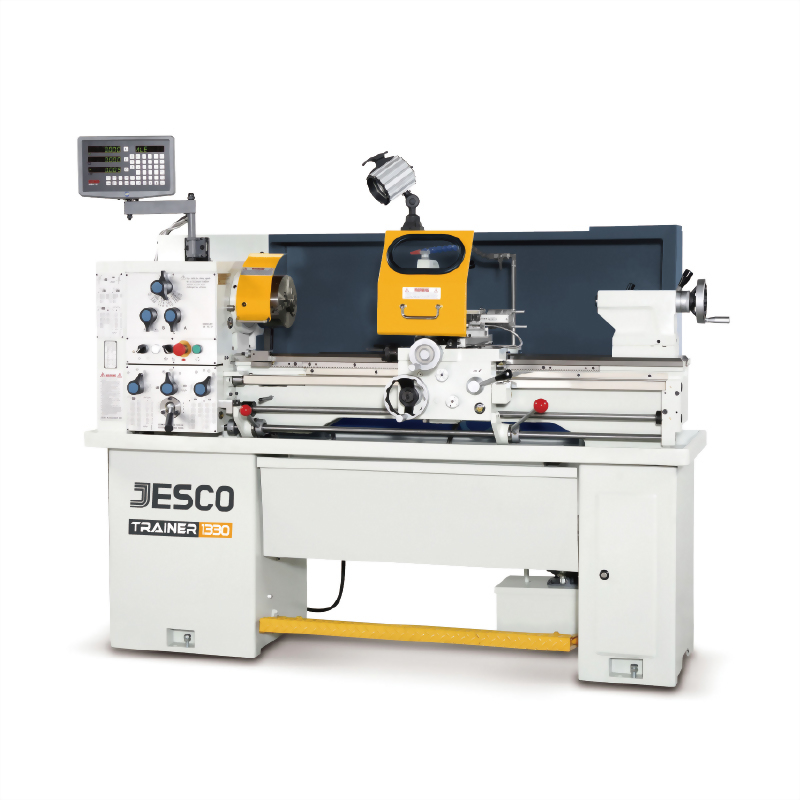

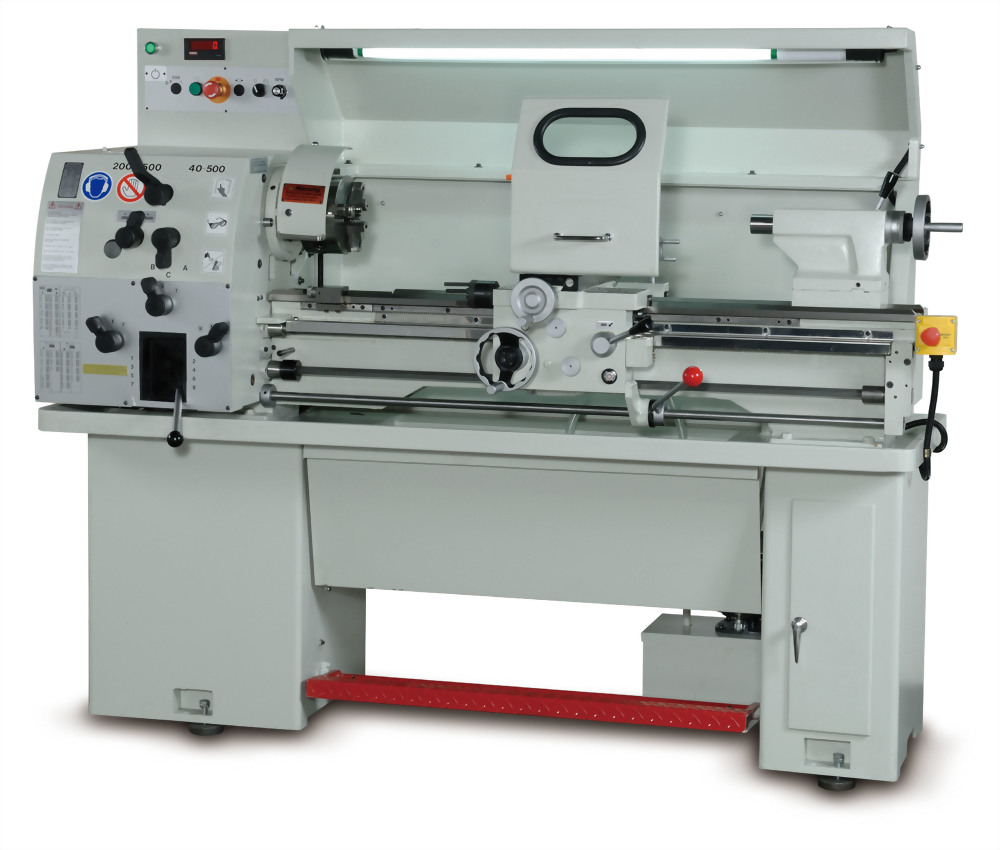

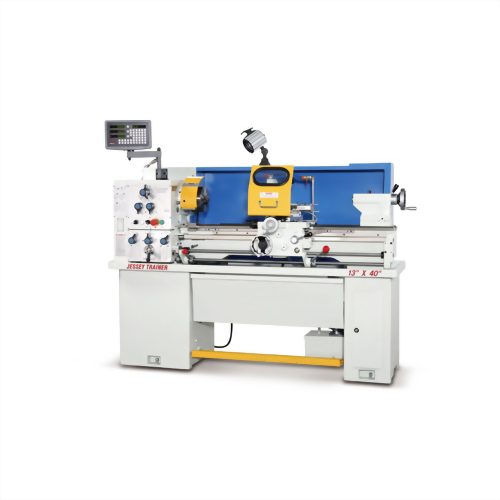

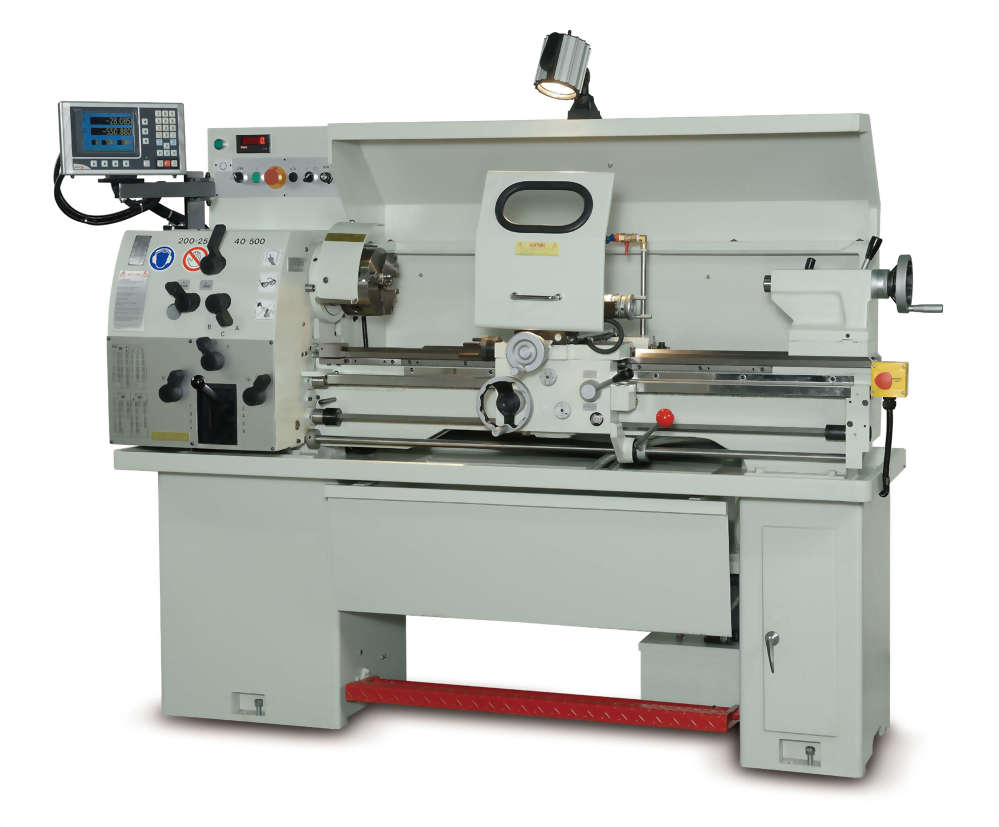

Model : TRAINER Series

  • Full geared headstock with 8 spindle speeds from 105-2000rpm.
  • D1-4 camlock spindle nose.
  • Rigid construction bed are induction hardened over HRC50 and precision ground.
  • Harden and ground spindles & gears in headstock.
  • The gears in gearbox are hardened and self-splash lubricated as oil bath.
  • Feeding and threading function are interlocked to prevent setting simulaneously.
  • Feeding direction and engagement are controlled by two push/pull plunger on apron.
  • Swing over bed: 330mm.
  • Both distance between centers 750mm and 1000mm bed.
  • Front moveable chip tray easily for chip collection and cleaning.
  • Adjustable controller to prevent over-travel for safety protection.
  • Main spindle motor: 2.25kw (3HP).
  • Foot brake pedal to apply quick stop and power off.
  • Lockable tool drawers.
SERIES TRAINER
MODELS 1330 1340
CAPACITY
Centre height 165 (6.5)
Swing over bed 330 (13)
Swing over cross slide 190 (7.5)
Swing in gap 510 (20)
Distance between centres 750 (30) 1000 (40)
Gap width in front of faceplate 150 (6)
Cross slide travel 145 (5.7)
Top slide travel 95 (3.75)
Width of bed 185 (7.3)
Length of bed 1380 (54.25) 1650 (65)
MAIN SPINDLE
Spindle nose (camlock) D-1-4
Spindle bore 35 (1.375)
Spindle
speed
Numbers 8 16-optional
Ranges(RPM)
Low / Medium / High
105-2000 53-2000
Varispeed Gear steps 2
Ranges (RPM) 40-2500
Spindle nose bush MT#4
Spindle centre MT#3
TAILSTOCK
Tailstock spindle travel 100 (4)
Tailstock barrel dia. 40 (1.56)
Tailstock centre MT#3
THREADING
No. of whitworth threads 47
Range of whitworth
threads (T.P.I.)
4-144
No. of metric threads 44
Range of metric threads 0.2-14mm
No. of Diametral pitch threads 30
Range of D.P. threads 4-44DP
No. of Module pitch threads 24
Range of Module pitch threads 0.3-3.5mm
FEED RANGE
Longitudinal feeds 0.02-1.04 (0.0008-0.0410)
Cross feeds About 1/3 of Longitudinal feeds
DRIVING MOTOR
Main motor Standard 2.25KW (3HP)
Optional 2.25/1.12KW(3/1.5HP)
Varispeed 2.25KW (3HP)
Leadscrew ---
PACKING SIZE
Length 1720 (68) 1970 (76)
Width 850 (34)
Height 1650 (65)
New weight (Approx. kgs) 670 720
Gross weight (Approx. kgs) 800 870

Standard Equipment:

  • Low voltage control system
  • Coolant system
  • Backplate for 3-jaw chuck
  • Threads indicators
  • Centers & center sleeve
  • Traveling chip guard
  • Leveling blocks
  • Service tools & toolbox
  • Operation manual

Optional Accessories:

  • 3-jaw chuck
  • 4-jaw chuck
  • Face plate
  • Steady rest
  • Follow rest
  • Rotating center
  • Halogen lamp
  • Chuck guard
  • Chip guard
  • Leadscrew cover
  • Ful length splash guard
  • Taper turning attachment
  • Quick change toolpost
  • CE electrical system
  • Variable speed
  • Magnetic brake
  • Any others by consult
