High Speed Precision Lathes

High Speed Precision Lathes

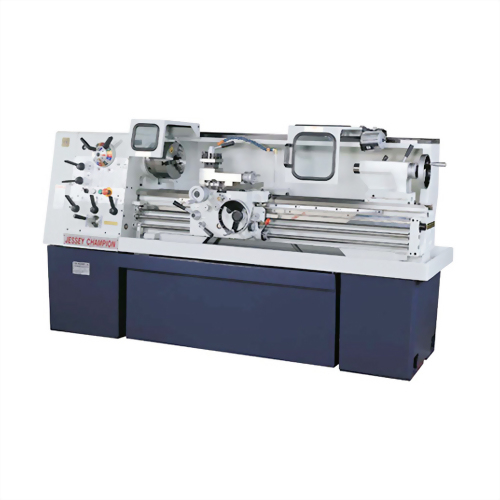

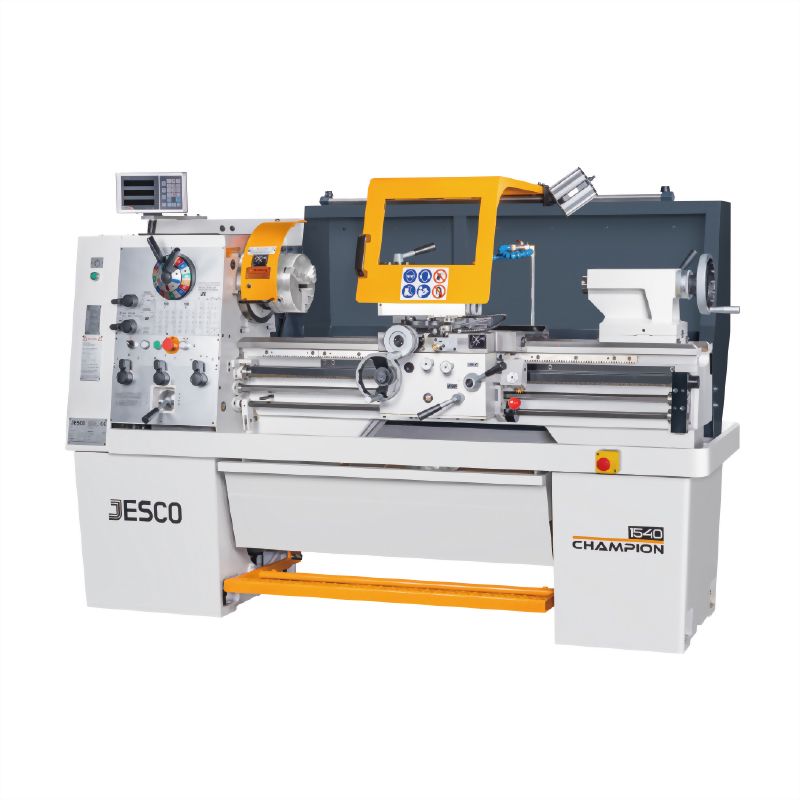

Model : CHAMPION Series
  • Rigid construction bed are induction hardened over HRC50 and with precision ground.
  • Harden and ground spindle & gears in headstock for high speed running at low noise.
  • Camlock spindle nose.
  • Double walls apron as oil bath.
  • Interlock device between feeding and threading.
  • Smooth, easy speed change selection.
  • Feed rod fitted with an overload clutch for safety.
  • Easy longitudinal & cross feed change operated by a push/pull plunger on apron.
  • Simple, fast, pull up engage, push down disengage, feed control lever.
  • Front moveable chip tray allows easy chip cleaning.
Unit: mm(inch)
MODELS 1530 1540 1550
Swing over bed 390 (15.25)
Swing over cross slide 240 (9.5)
Distance between centres 760 (30) 1000 (40) 1250 (50)
Spindle nose (camlock) D-1-6
Spindle bore 54 (2.125)
Cross slide travel 230 (9)
Top slide travel 120 (4.75)
Tailstock spindle travel 155 (6.125)
Tailstock barrel diameter 58.5 (2.312)

Standard Equipment:

  • Low voltage control
  • Coolant system
  • Motor: 7.5HP
  • Universal gearbox
  • Backplate for 3-Jaw chuck
  • 4-way toolpost
  • Threads indicators
  • Centers & center sleeve
  • Leveling blocks
  • Service tools & toolbox
  • Touch paints
  • Instruction & parts manual

Optional Accessories:

  • Variable Speed
  • Splindle clutch system
  • 3-jaw scroll chuck
  • 4-jaw independent chuck
  • Face plate
  • Steady rest
  • Follow rest
  • Rotating center
  • Full length splash guard
  • Halogen lamp
  • Chuck safety guard
  • Chip safety guard
  • CE electrical system
  • Leadscrew cover
  • Turret type micrometer bed stop
  • 5C collet attachment
  • Taper turning attachment
  • Quick change toolpost
  • Magnetic brake system
  • Chip trolley instead of chip pan, but without foot brake
