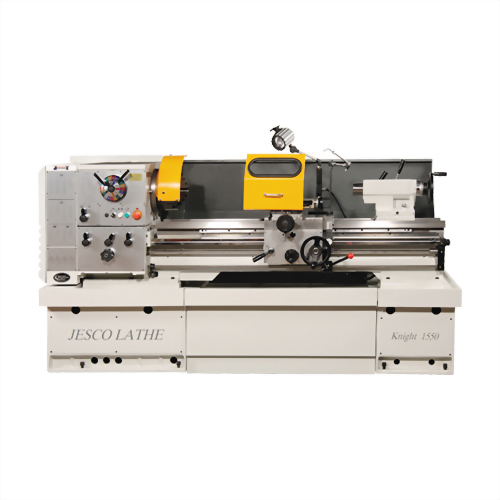

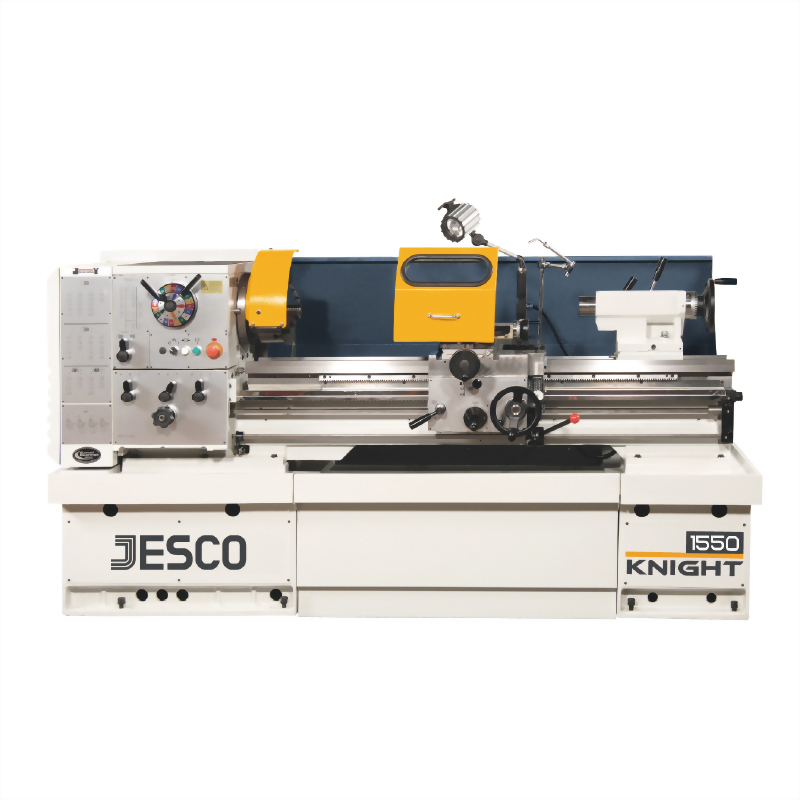

High Speed Precision Lathes
Model :
KNIGHT Series
- Full geared headstock with 16 spindle speeds from 25-2000rpm.
- D1-6 camlock spindle nose.
- Rigid construction bed are induction hardened over HRC50 and precision ground.
- Harden and ground spindles & gears in headstock.
- Main spindle with GAMET bearings supported.
- Equipped with „Matrix“ mechanical multi-plate clutch.
- Universal gear box for metric, whitworth, module and D.P.threading cutting.
- Saddle slideways on bed coated with Germany made moglice for anti-friction.
- Front moveable chip tray easily for chip collection and cleaning.
- 400mm swing over bed.
- Gap bed with distance between centers 1250mm.
- Main spindle motor: 7.5kw (10HP).
- Equipped with magnetic brake without foot brake pedal.
- CE compliance.
Unit: mm(inch)
| MODELS | 1550 |
| Swing over bed | 400 (15.75) |
| Swing over cross slide | 246 (9.625) |
| Distance between centres | 1250 (50) |
| Spindle nose (camlock) | D-1-6 |
| Spindle bore | 54 (2.125) |
| Cross slide travel | 250 (9.875) |
| Top slide travel | 100 (4) |
| Tailstock spindle travel | 145 (5.687) |
| Tailstock barrel diameter | 63 (2.5) |
Standard Equipment:
- Low voltage control
- Motor: 10HP
- CE electrical system
- Universal gearbox
- Coolant system
- Splash guard
- Backplate for 3-jaw chuck
- Quick change toolpost
- Threads indicators
- Interlock chuck guard
- Traveling chip guard
- Leadscrew cover
- Halogen lamp
- Longitudinal over travel protection
- Centers & center sleeve
- Leveling blocks
- Service tools & toolbox
- Magnetic brake without foot brake
- Touch paints
- Instruction & parts manual
Optional Accessories:
- 3-jaw scroll chuck
- 4-jaw independent chuck
- Face plate
- Steady rest
- Follow rest
- Rotating center
- Taper turning attachment
