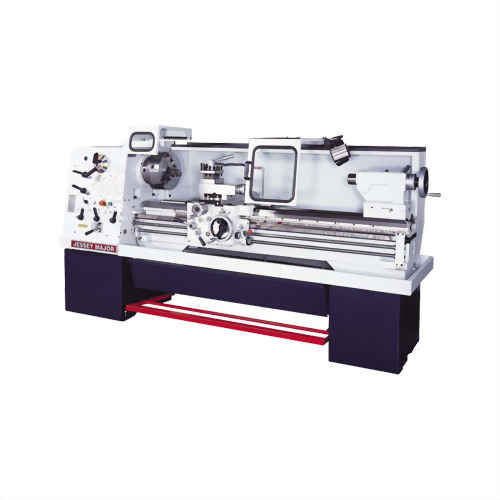

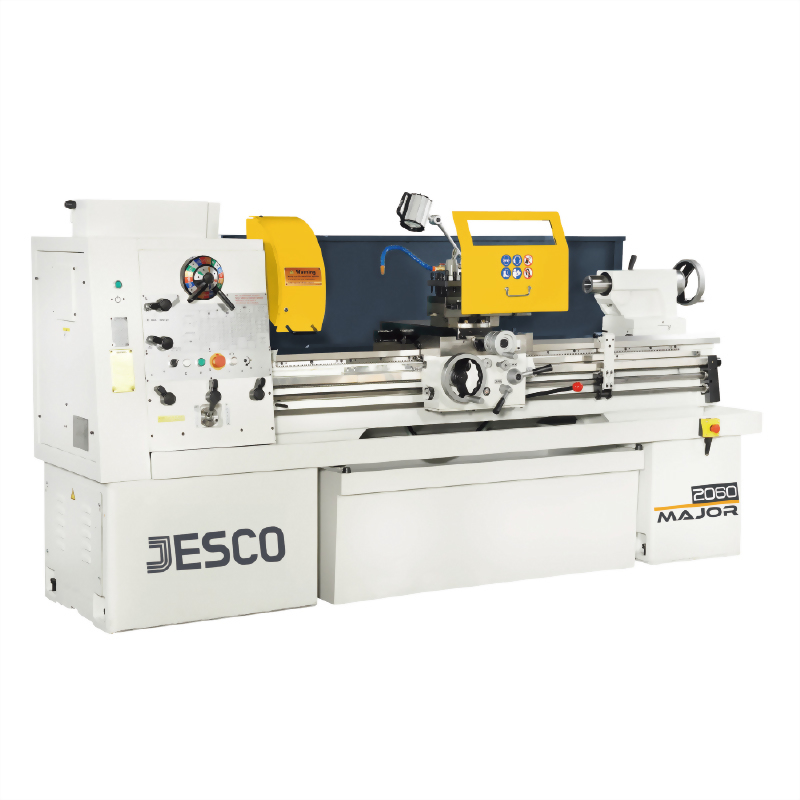

Model :
MAJOR Series
- D1-8 camlock spindle nose.
- 16-step spindle speed from 20-1600rpm.
- Optional variable-speed drive from 20-2000rpm in 3 variable ranges.
- 15HP (11.25kw) spindle motor.
- Swing over bed 460mm/510mm/560mm.
- Distance between center 1000mm/1500mm/2000mm/3000mm.
- Headstock gears with precision hardened and ground.
- Universal gearbox provides comperhensive range of metric, imperial M.P. and D.P.threading.
- Induction hardened & precision ground bed
|
MODELS |
2040/2060/2080/20120 |
2240/2260/2280/22120 |
||
|
CAPACITY |
|
|||
|
Centre height |
254 |
280 (11) |
||
|
Swing over bed |
510 |
560 (22) |
||
|
Swing over cross slide |
340 |
390 (15.5) |
||
|
Swing in gap |
760 |
810 (32) |
||
|
Distance between centres |
2040/2240…950 (40)
2060/2260…1450 (60)
2080/2280…1950 (80)
20120/22120…2950 (120) |
|||
|
Gap width in front of faceplate |
220 (8.7) |
|||
|
Cross slide travel |
265 (10.5) |
|||
|
Top slide travel |
130 (5.1) |
|||
|
Width of bed |
345 (13) |
|||
|
Length of bed |
2040/2240…2110 (83)
2060/2260…2670 (105)
2080/2280…3175 (125)
20120/22120…4190 (165) |
|||
|
MAIN SPINDLE |
|
|||
|
Spindle nose (camlock) |
D-1-8 |
D-1-8 |
D-1-11 |
|
|
Spindle bore |
80 |
80 |
104 |
|
|
Spindle speed |
Numbers |
16 |
16 |
xxx |
|
Ranges (RPM) |
20-1600 |
20-1600 |
xxx |
|
|
Varispeed
|
Gear steps |
3 |
3 |
3 |
|
Ranges (RPM) |
20-2000 |
20-2000 |
18-1800 |
|
|
Spindle nose bush |
MT#7 |
MT#7 |
MT#7 |
|
|
Spindle centre |
MT#5 |
MT#5 |
MT#6 |
|
|
TAILSTOCK |
|
|||
|
Tailstock spindle travel |
180 |
|||
|
Tailstock barrel dia. |
75 |
|||
|
Tailstock centre |
MT#5 |
|||
|
THREADING |
|
|||
|
No. of whitworth threads |
45 |
45 |
73 |
|
|
Range of whitworth threads (T.P.I.) |
2-72 |
2-72 |
2-84 |
|
|
No. of metric threads |
39 |
39 |
66 |
|
|
Range of metric threads |
0.2-14mm |
0.2-14mm |
0.2-14 |
|
|
No. of Diametral pitch threads |
21 |
21 |
27 |
|
|
Range of D.P. threads |
8-44DP |
8-44DP |
8-72 |
|
|
No. of Module pitch threads |
18 |
18 |
20 |
|
|
Range of Module pitch threads |
0.3-3.5mm |
0.3-3.5mm |
0.2-3.5 |
|
|
FEED RANGE |
|
|||
|
Longitudinal feeds |
0.04-1.0 |
0.04-1.0 |
0.04-2.8 |
|
|
Cross feeds |
0.02-0.5 |
0.02-0.5 |
0.02-1.4 |
|
|
DRIVING MOTOR |
|
|||
|
Main motor
|
Standard |
11.25KW(15HP) |
||
|
Optional |
11.25KW(15HP) |
|||
|
Varispeed |
11.25KW(15HP) |
|||
|
PACKING SIZE |
|
|||
|
Length |
2040/2240…2460
2060/2260…2947
2080/2280…3455
20120/22120…4470 |
|||
|
Width |
1100 (44) |
|||
|
Height |
1778 1928-CE |
1830 1980 -CE |
||
|
New weight (Approx. kgs) |
2000/2200/2500/3500 |
2200/2400/2700/3700 |
||
|
Gross weight (Approx. kgs) |
2250/2500/2850/4000 |
2500/2700/3050/4200 |
||
The above specifications subject to changed without prior notice.
Standard Equipment:
- Low voltage control
- Coolant system
- Mechanical multi-plate clutch
- Motor: 15HP
- Universal gearbox
- Backplate for 3-jaw chuck
- 4-way toolpost
- Threads indicators
- Centers & center sleeve
- Leveling blocks
- Service tools & toolbox
- Touch paints
- Instruction & parts manual
Optional Accessories:
- Variable speed
- 3-jaw scroll chuck
- 4-jaw independent chuck
- Face plate
- Steady rest
- Follow rest
- Rotating center
- Full length splash guard
- Halogen lamp
- Chuck safety guard
- Chip safety guard
- CE electrical system
- Leadscrew cover
- Turret type micrometer bed stop
- Taper turning attachment
- Quick change toolpost
- Rapid feed attachment for Z-axis movement
- Double-speed tailstock
- Magnetic brake system
- Chip trolley instead of chip pan, but without foot brake
