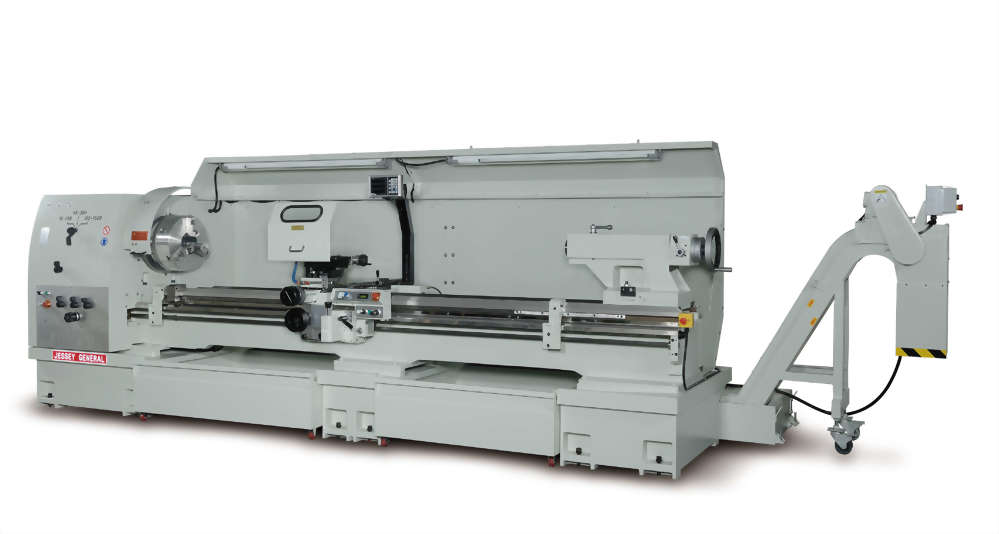

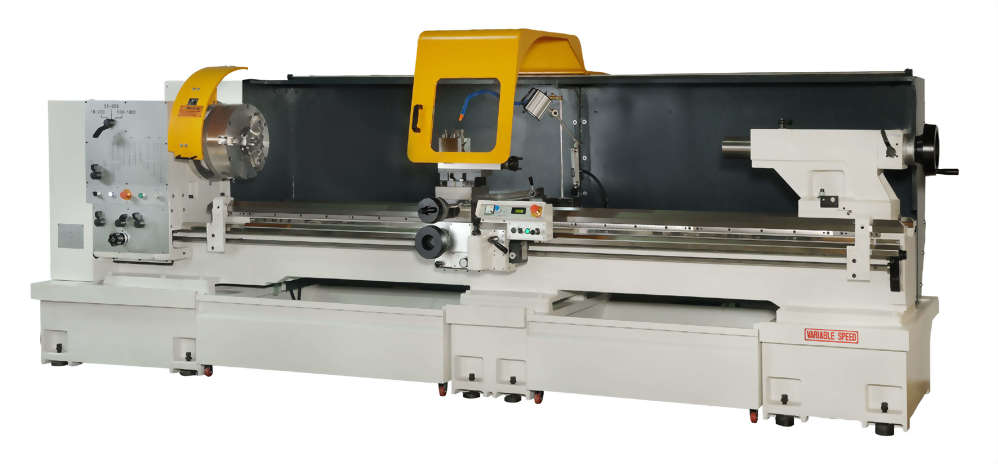

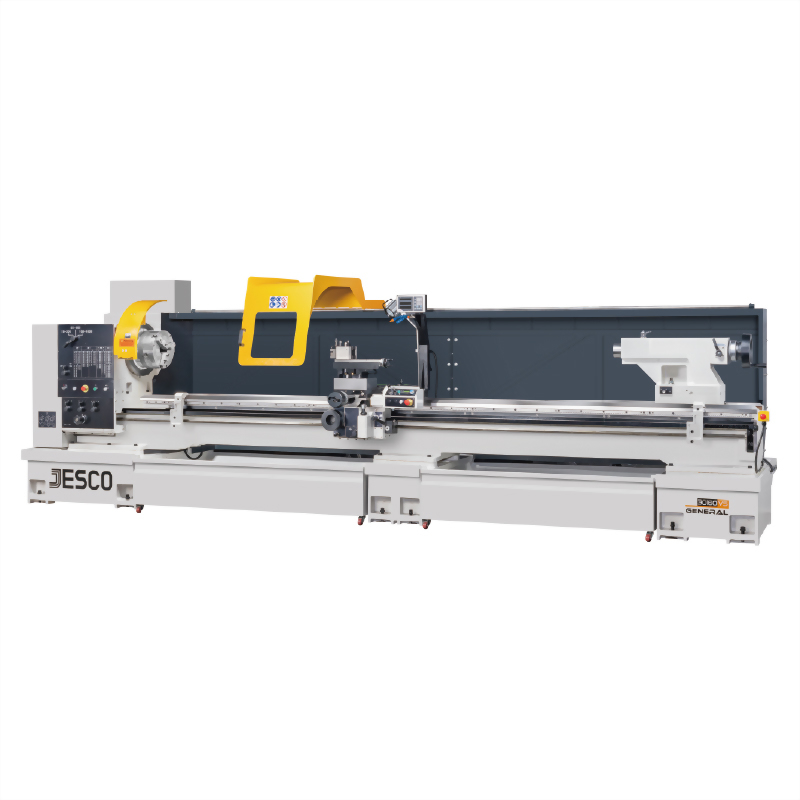

High Speed Precision Lathes

Model : GENERAL-LATHE Series

  • Rigid construction bed are induction hardened over HRC50 and with precision ground.
  • Harden and ground spindle & gears in headstock for high speed running at low noise.
  • Camlock spindle nose.
  • Variable-speed drive from 10-1400rpm in 4 variable-ranges
  • Double walls apron as oil bath.
  • Interlock device between feeding and threading.
  • Smooth, easy speed change selection.
  • Feed rod fitted with an overload clutch for safety.
  • Easy longitudinal & cross feed change operated by a push/pull plunger on apron.
  • Simple, fast, pull up engage, push down disengage, feed control lever.
  • Front moveable chip tray allows easy chip cleaning.
Unit: mm(inch)
MODELS 2660/ 2680/ 26120/ 26160 3060/ 3080/ 30120/ 30160
Swing over Bed 660 (26) 760 (30)
Swing over Cross-Slide 460 (18) 560 (22)
Distance between Center 1500 (60) 2000 (80) 3000 (120) 4000 (160)
Spindle Nose D-1-11 (A-2-11 Option)
Spindle Bore 105 (4.125)
Cross-Slide Travel 330 (13) 380 (15)
Top-Slide Travel 250 (10)
Tailstock spindle travel 300 (12)
Tailstock barrel diameter 105 (4.125)

Standard Equipment:

  • Low voltage control
  • Coolant system
  • Motor: 20HP
  • Variable Speed with Inverter Driver
  • Universal gearbox
  • Backplate for 3-Jaw chuck
  • 4-way toolpost
  • Threads indicators
  • Full length splash guard
  • Centers & center sleeve
  • Inverter Brake System with Electrical Brake
  • Leveling blocks
  • Service tools & toolbox
  • Instruction & parts manual

Optional Accessories:

  • 3-jaw scroll chuck
  • 4-jaw independent chuck
  • Steady rest
  • Follow rest
  • Rotating center
  • Halogen lamp
  • Chuck safety guard
  • Chip safety guard
  • CE electrical system
  • Leadscrew cover
  • Turret type micrometer bed stop
  • Taper turning attachment
  • Quick change toolpost
