Model :

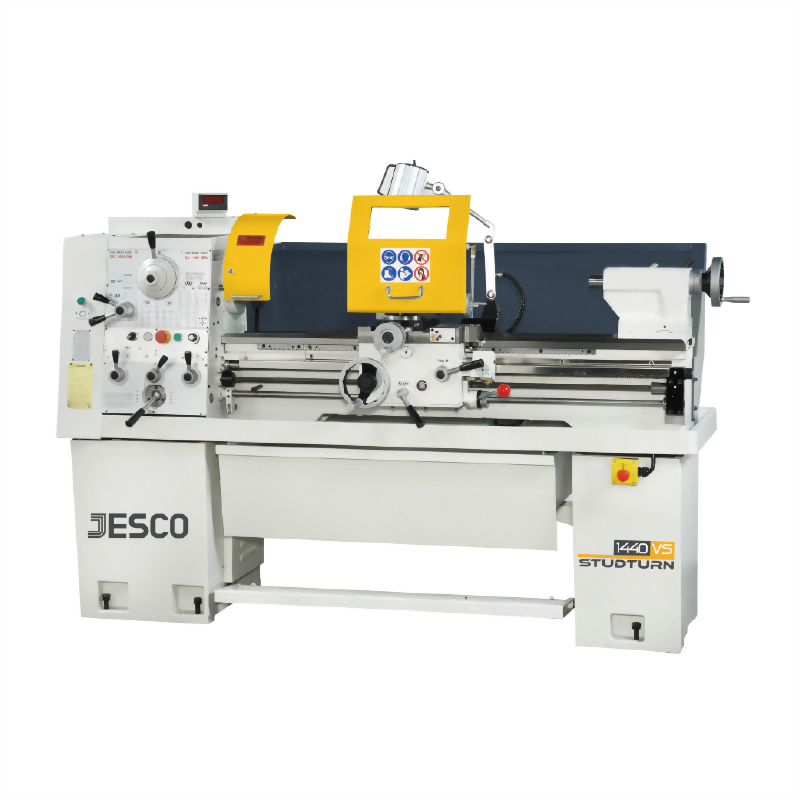

STUDTURN Series
- D1-5 camlock spindle nose.
- 8-step spindle speed from 70-2000rpm.
- Optional 2-speed motor driven for 16-step speed from 35-2000rpm.

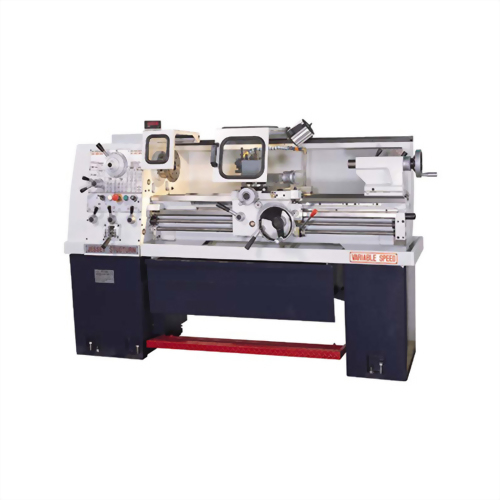

- Optional variable-speed driven from 35-2500 in 2 variable ranges.
- 5HP(3.75kw) spindle motor.
- Swing over bed 360mm.
- Distance between center 750mm/1000mm.
- Headstock gears with precision hardened and ground.
- Universal gearbox provides comprehensive range of metric, imperial, M.P. and D.P. threading.
- Induction hardened & precision ground bed.
Unit: mm(inch)
| MODELS | 1430 | 1440 |
| Swing over bed | 360 (14.25) | |
| Swing over cross slide | 215 (8.625) | |
| Distance between centres | 750 (30) | 1000 (40) |
| Spindle nose (camlock) | D-1-5 | |
| Spindle bore | 42 (1.625) | |
| Cross slide travel | 195 (7.6) | |
| Top slide travel | 100 (4) | |
| Tailstock spindle travel | 120 (4.75) | |
| Tailstock barrel diameter | 50 (2) | |
Standard Equipment:
- Low voltage control system
- Coolant system
- Backplate for 3-jaw chuck
- Thread indicator
- Centers & center sleeve
- Leveling blocks
- Service tools & toolbox
- Operation manual
Optional Accessories:
- 3-jaw chuck
- 4-jaw chuck
- Face plate
- Steady rest
- Follow rest
- Rotating center
- Halogen lamp
- Chuck guard
- Chip guard
- Leadscrew cover
- Full length splash guard
- Taper turning attachment
- Quick change toolpost
- CE electrical system
- Magnetic brake system
- Any others by consult
