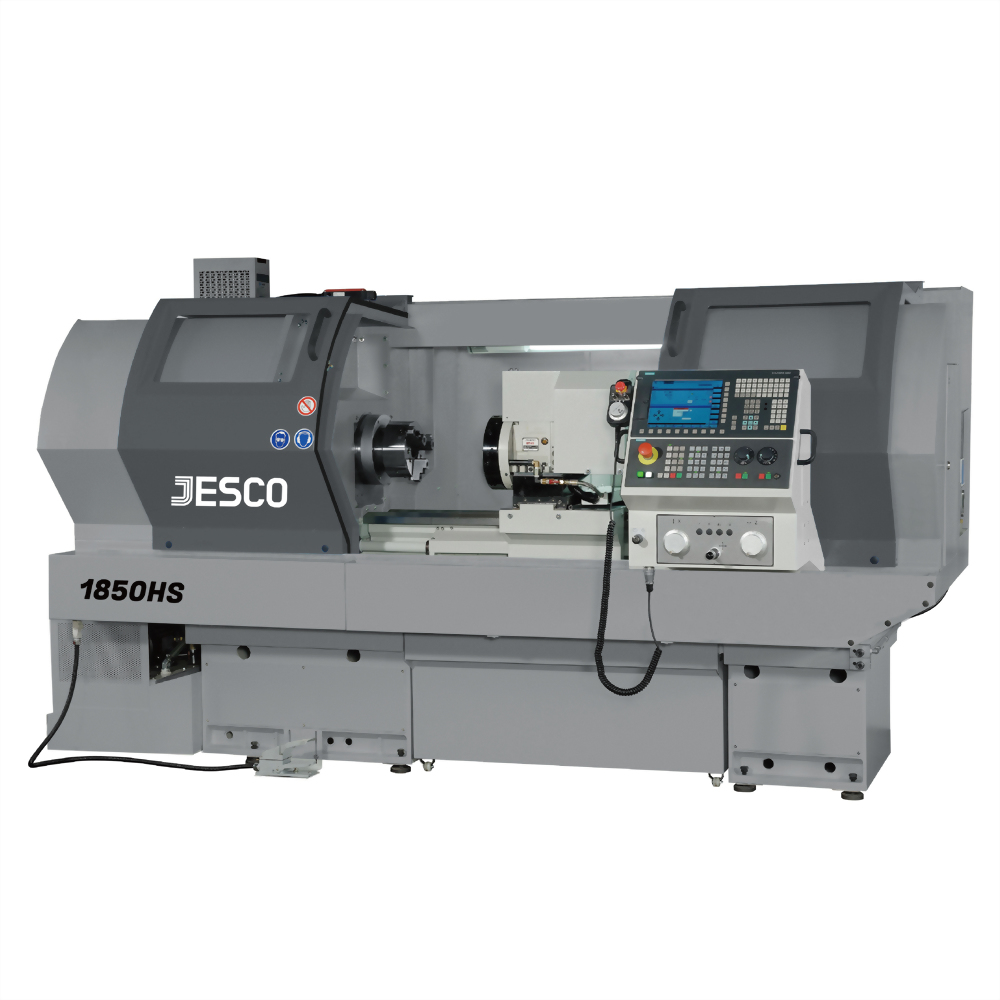

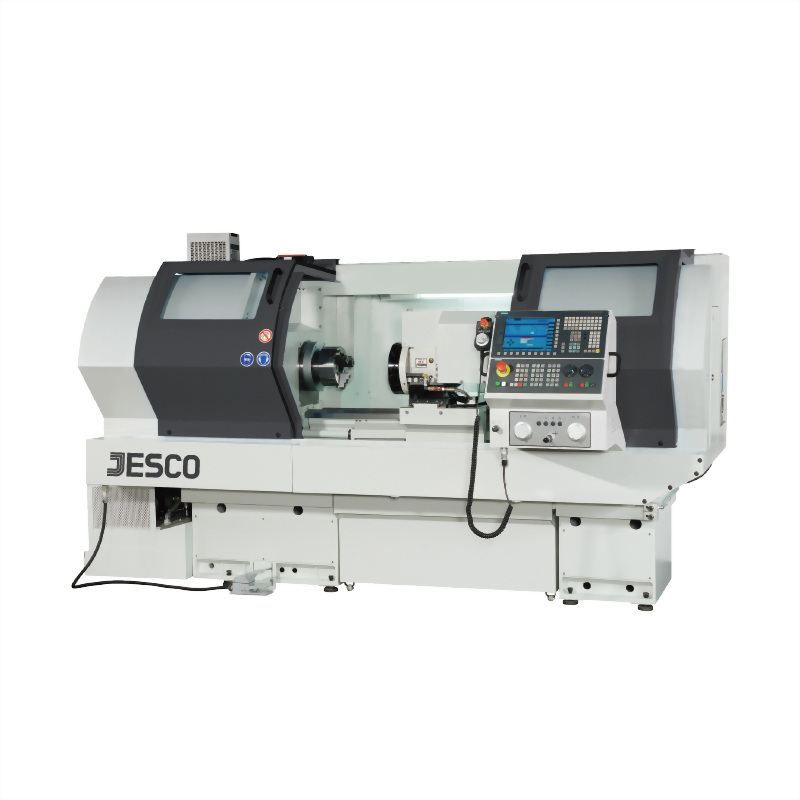

JAGUAR ENC-HS Lathe
Home
Products
JAGUAR Flat-Bed Teach-In Lathe
JAGUAR ENC-HS Lathe
Model :
1825/1850HS
Attach
encf.pdf
Q'ty :
Add To Inquiry
Description
Specifications
Features
Universal basic turning machine for board range of manufacuring
Highest productivity for the wide range of applications and industries
High output belt driven spindle
Added full C-Axis operation: full milling, drilling and tapping capabilities

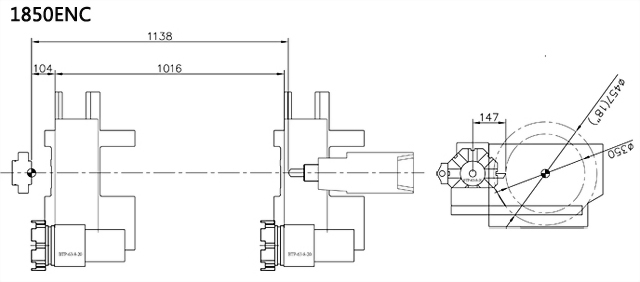

MODEL
HS-1825/1850
CAPACITY
Swing over bed
460(18)
Swing over cross slide
285(11.2)
Swing in gap
635(25)
Distance between center
427(17)/1027 (40)
Gap width from faceplate
165(6.5)
HEADSTOCK
Spindle nose
A2-6
Spindle bore
62mm
Spindle Bearing - Front
NN3020KR
Spindle Bearing - Rear
NN3018KR
Spindle speeds - Low range
0-4500rpm
TAILSTOCK
Quill travel
140(5.5)
Quill diameter
73(2.87)
Quill taper
MT5
BED
Bed width
318(12.5)
Max. longitudinal travel
300(12)/900(35)
Max. turning length
260(10.2)/800(33.8)
BALLSCREW
X-Axis Ballscrew Dia.
20 x P5
Z-Axis Ballscrew Dia.
32 x P5
GENERAL INFORMATION
Overall length
2730(107)/3330(131)
Overall width
2250(88)
Overall height
2150(85)
Net weight (Approx. kgs)
2000/2200
Gross weight (Approx. kgs)
2400/2700
Standard Equipment:
F
agor 8060FL control system
Automatic lubrication pump for slideways and ballscrews
High pressure coolant system 1.5bar
Full enclosed end guard
Working light
Leveling blocks
Service tools & toolbox
Optional Equipment:
Fanuc 0i-TF control system
Siemens 828D control system
Manual type chuck
Hydraulic chuck
Elec.8-station turret (front mounting)
C-axis live turret
Hydraulic tailstock
Steady rest
Follow rest
Chain type chip conveyor
Special functions by consult
