Model :

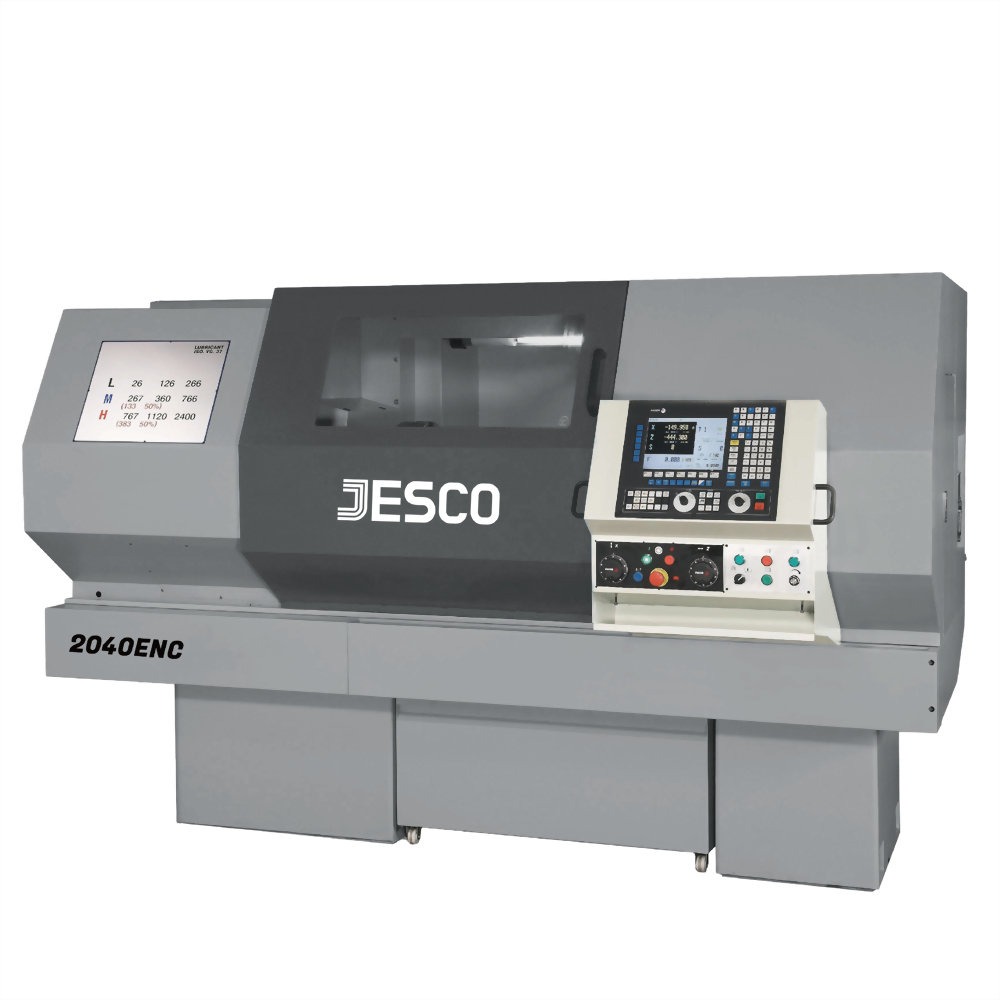

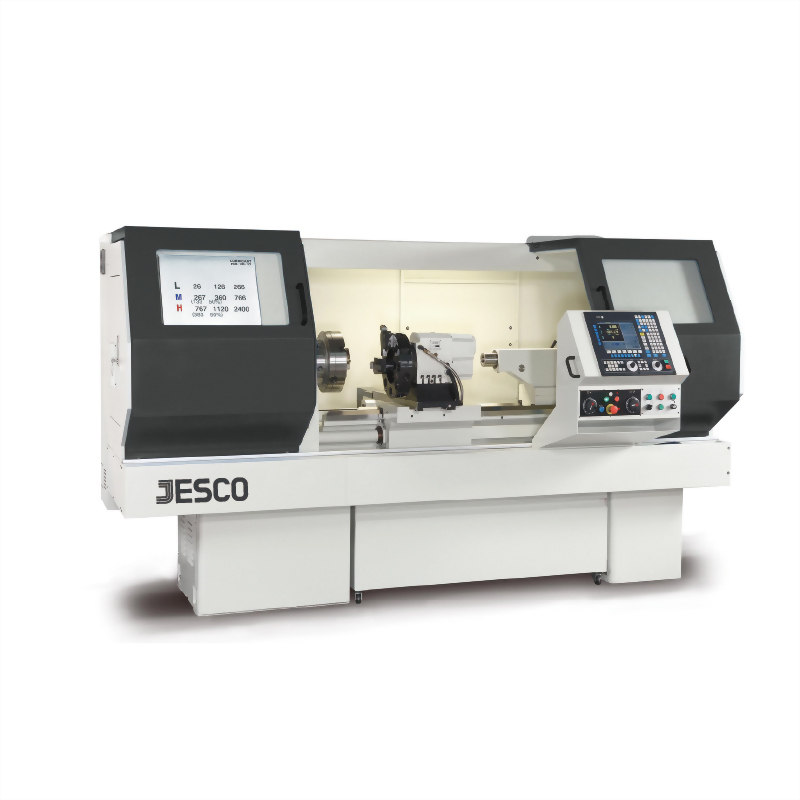

20" / 22" ENC Series
- The rigid construction bed are induction hardened over HRC50 and precision ground provides heavy duty turning and fine finishing at high accuracy.
- The main spindle is supported by selected and preloaded super precision bearings to ensure high accuracy through full speed ranges.
- The main spindle, shafts and gears in the headstock are made by high grade alloy steel, are hardened and precision ground for high speed running at lower noise level.
- The automatic lubrication pump equipped on apron provides all slide-ways and two axes ballscrews lubricants continually.
- The hardened and precision ground ballscrews for X & Z axes are mounted on high precision bearings to enable sensitive movement.
- Both X & Z axes equipped with individual electronical handwheels on control panel for manual operation as conventional lathes.
- Full length rear splash guard and front moveable chip trolley provides chip and coolants safety and easy clean.
- Both X & Z axes are equipped with selected controller whole package AC servo motors with its own power supply and monodrives.
| MODEL | 2040/2060/2080/20120 | 2240/2260/2280/22120 | |
| CAPACITY | |||
| Swing over bed | 510(20) | 560(22) | |
| Swing over cross slide | 340(13.5) | 390(15.5) | |
| Swing in gap | 760(30) | 810(32) | |
| Distance between center | 934(40)/1442(60)/1950(80)/2966(120) | ||
| Gap width from faceplate | 230(9) | ||
| HEADSTOCK | |||
| Spindle nose | D1-8(A2-8) | D1-8(A2-8) | D1-11 |
| Spindle bore | 80(3.125) | 80(3.125) | 104(4) |
| Spindle Bearing - Front | 32026 | 32026 | 32030 |
| Spindle Bearing - Rear | 32021 | 32021 | 32026 |
| Spindle speeds: Low range | 26-266 | 26-266 | 1-224 |
| Spindle speeds: Medium range | 267-766 | 267-766 | 255-672 |
| Spindle speeds: High range | 767-2400 | 767-2400 | 673-2000 |
| TAILSTOCK | |||
| Quill travel | 200(8) | ||
| Quill diameter | 75(3) | ||
| Quill taper | MT5 | ||
| BED | |||
| Bed width | 345(13) | ||
| Max. longitudinal travel | 680(26.8)/1190(46.8)/1700(67)/2710(106.7) | ||
| Max. turning length | 630(24.8)/1140(44.8)/1650(65)/2660(104.7) | ||
| BALLSCREW | |||
| X-Axis Ballscrew Dia. | 25 x P5 | ||
| Z-Axis Ballscrew Dia. | 40 x P10 | ||
| GENERAL INFORMATION | |||
| Overall length | 2970(117)/3670(145)/4170(164)/5170(204) | ||
| Overall width | 2100(83) | ||
| Overall height | 2230(88) | ||
| Net weight (Approx. kgs) | 2600/2800/3000/3800 | 2700/2900/3200/4000 | |
| Gross weight (Approx. kgs) | 3200/3400/3600/4600 | 3500/3700/4000/4800 | |
Standard Equipment:
- Automatic lubrication pump for slideways and ballscrews
- Automatic spindle speed gear change
- Cutting fluid coolant system
- Full enclosed end guard
- Headstock/gearbox oil cooler design
- Working light
- Leveling blocks
- Centers & center sleeve
- Service tools & toolbox
- Instruction & parts manual
Optional Accessories:
- Manual type 3-jaw scroll chuck
- Manual type 4-jaw indepedent chuck
- Hydraulic hollow chuck
- Dixon quick change toolpost
- Elec. 4-way toolpost
- Elec. 8-station turret (Front Mounting)
- Hydraulic tailstock
- Steady rest
- Follow rest
- Chain type chip conveyor with cart
- C-Axis with live turret
- Special functions by consult
