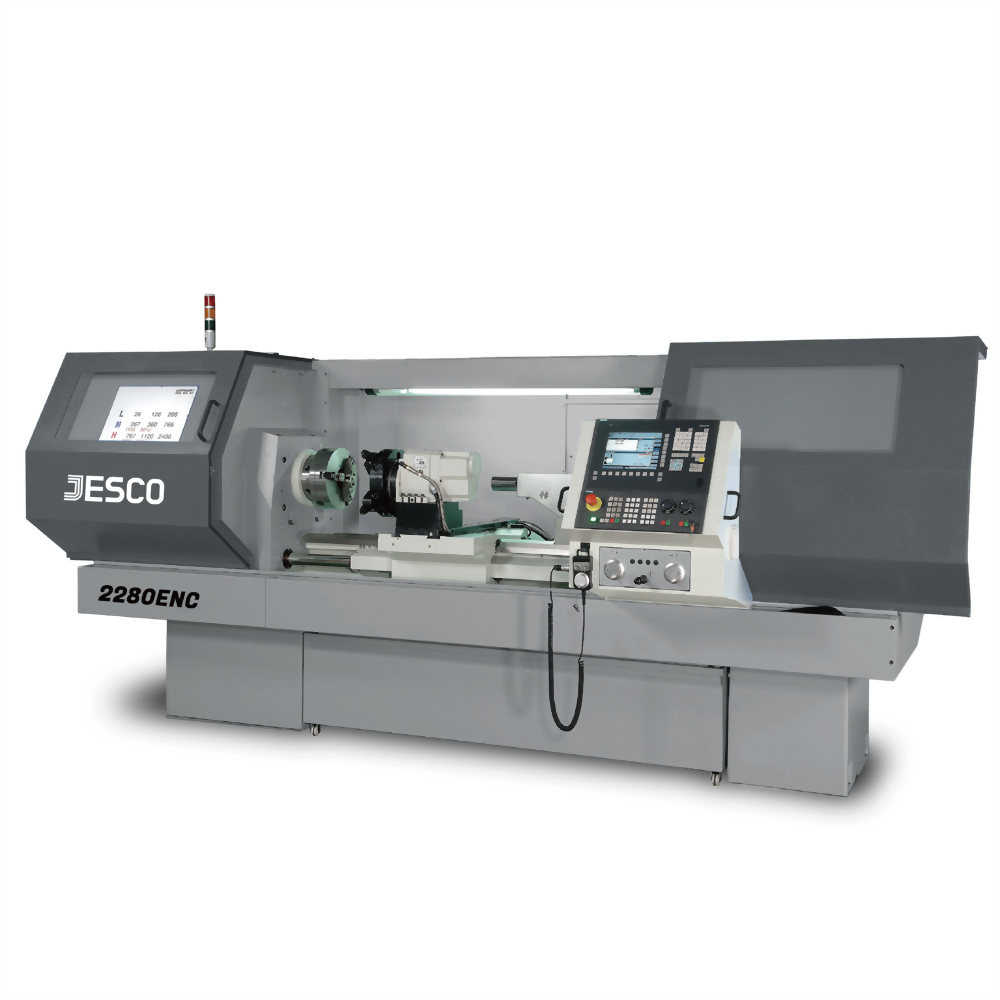

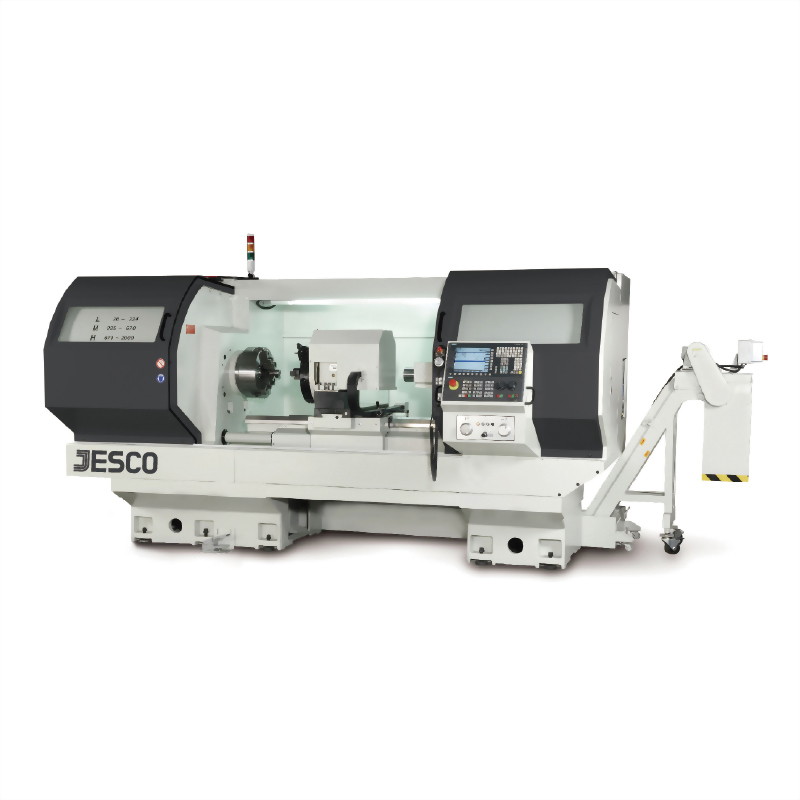

Model :
2240/2260/2280/22120HS
- Universal basic turning machine for board range of manufacuring
- Highest productivity for the wide range of applications and industries
- High output belt driven spindle
- Added full C-Axis operation: full milling, drilling and tapping capabilities

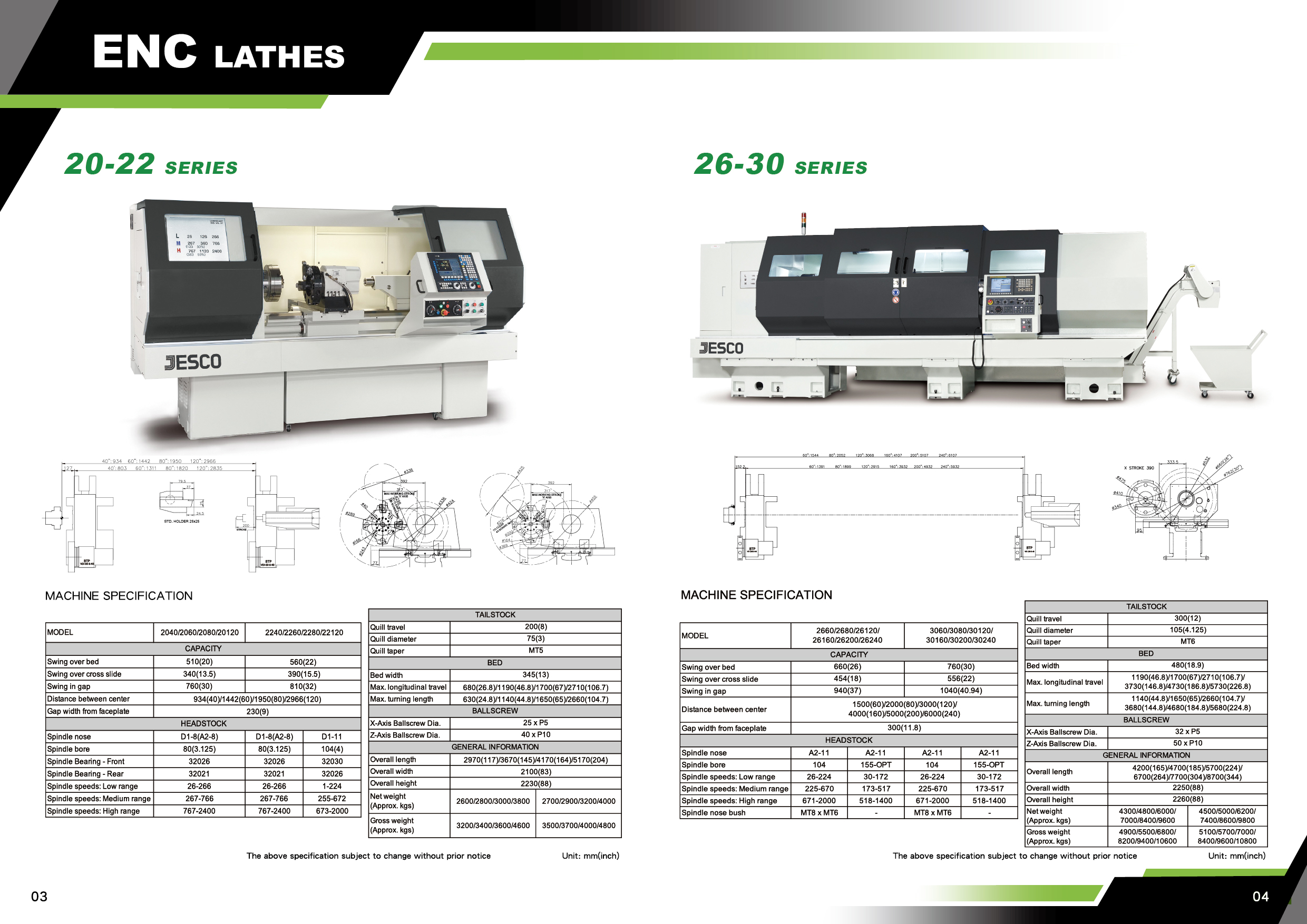

| MODEL | HS-2240/2260/2280/22120 | ||
| CAPACITY | |||
| Swing over bed | 560(22) | ||
| Swing over cross slide | 300(15.5) | ||
| Swing in gap | 810(32) | ||

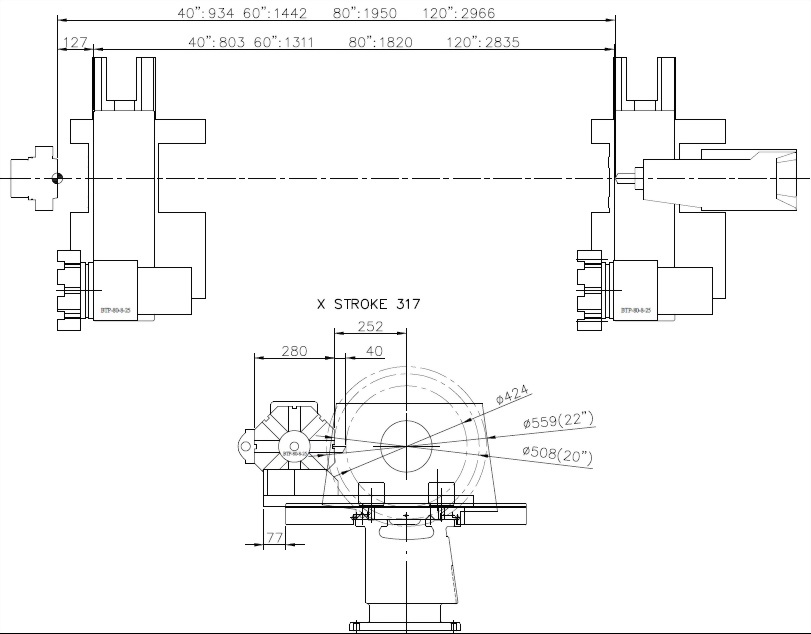

| Distance between center | 934(40)/1442(60)/1950(80)/2966(120) | ||
| Gap width from faceplate | 230(9) | ||
| HEADSTOCK | |||
| Spindle nose | A2-8 | A2-8 | A2-8 |
| Spindle bore | 87mm | 87mm | 102mm |
| Spindle Bearing - Front | NN3024KR | NN3024KR | NN3028KR |
| Spindle Bearing - Rear | NN3022KR | NN3022KR | NN3026KR |
| Spindle speeds - Low range | 0-3500rpm | 0-3500rpm | 0-3000rpm |
| TAILSTOCK | |||
| Quill travel | 200(8) | ||
| Quill diameter | 75(3) | ||
| Quill taper | MT5 | ||
| BED | |||
| Bed width | 345(13) | ||
| Max. longitudinal travel | 680(26.8)/1190(46.8)/1700(67)/2710(106.7) | ||
| Max. turning length | 630(24.8)/1140(44.8)/1650(65)/2660(104.7) | ||
| BALLSCREW | |||
| X-Axis Ballscrew Dia. | 25 x P5 | ||
| Z-Axis Ballscrew Dia. | 40 x P10 | ||
| GENERAL INFORMATION | |||
| Overall length | 2970(117)/3670(145)/4170(164)/5170(204) | ||
| Overall width | 2100(83) | ||
| Overall height | 2230(88) | ||
| Net weight (Approx. kgs) | 2700/2900/3200/4000 | ||
| Gross weight (Approx. kgs) | 3500/3700/4000/4800 | ||
Standard Equipment:
- Fagor 8060FL control system
- Automatic lubrication pump for slideways and ballscrews
- High pressure coolant system 1.5bar
- Full enclosed end guard
- Working light
- Leveling blocks
- Service tools & toolbox
Optional Equipment:
- Fanuc 0i-TF control system
- Siemens 828D control system
- Manual type chuck
- Hydraulic chuck
- Elec.8-station turret (front mounting)
- C-axis live turret
- Hydraulic tailstock
- Steady rest
- Follow rest
- Chain type chip conveyor
- Special functions by consult
