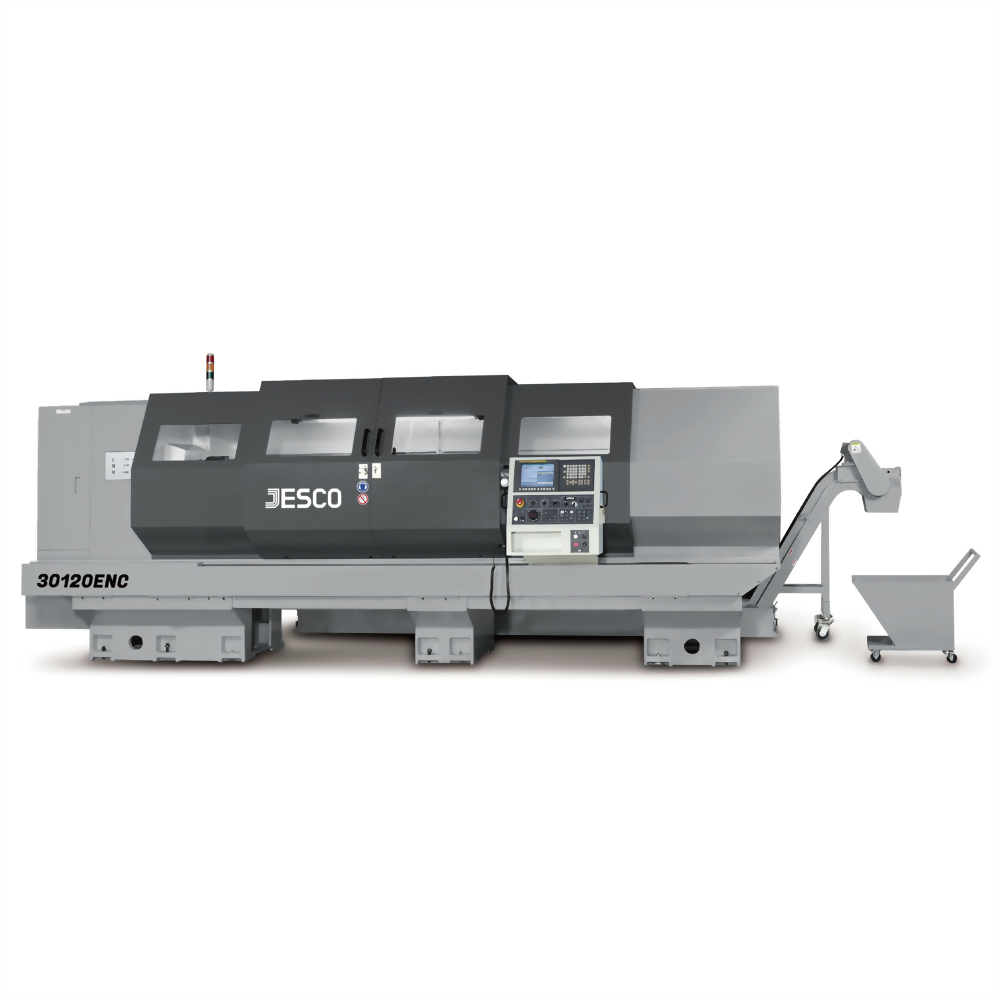

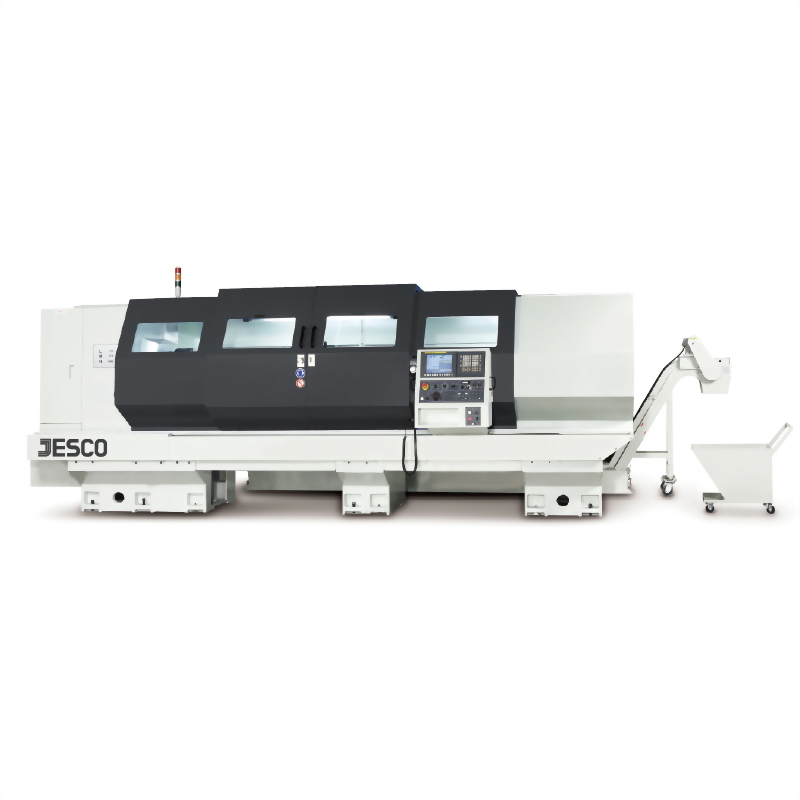

JAGUAR ENC-HS Lathe

Model : 3060/3080/30120/30160/30200/30240HS

  • Universal basic turning machine for board range of manufacturing
  • Highest productivity for the wide range of applications and industries
  • High output belt driven spindle
  • Added full C-Axis operation: full milling, drilling and tapping capabilities

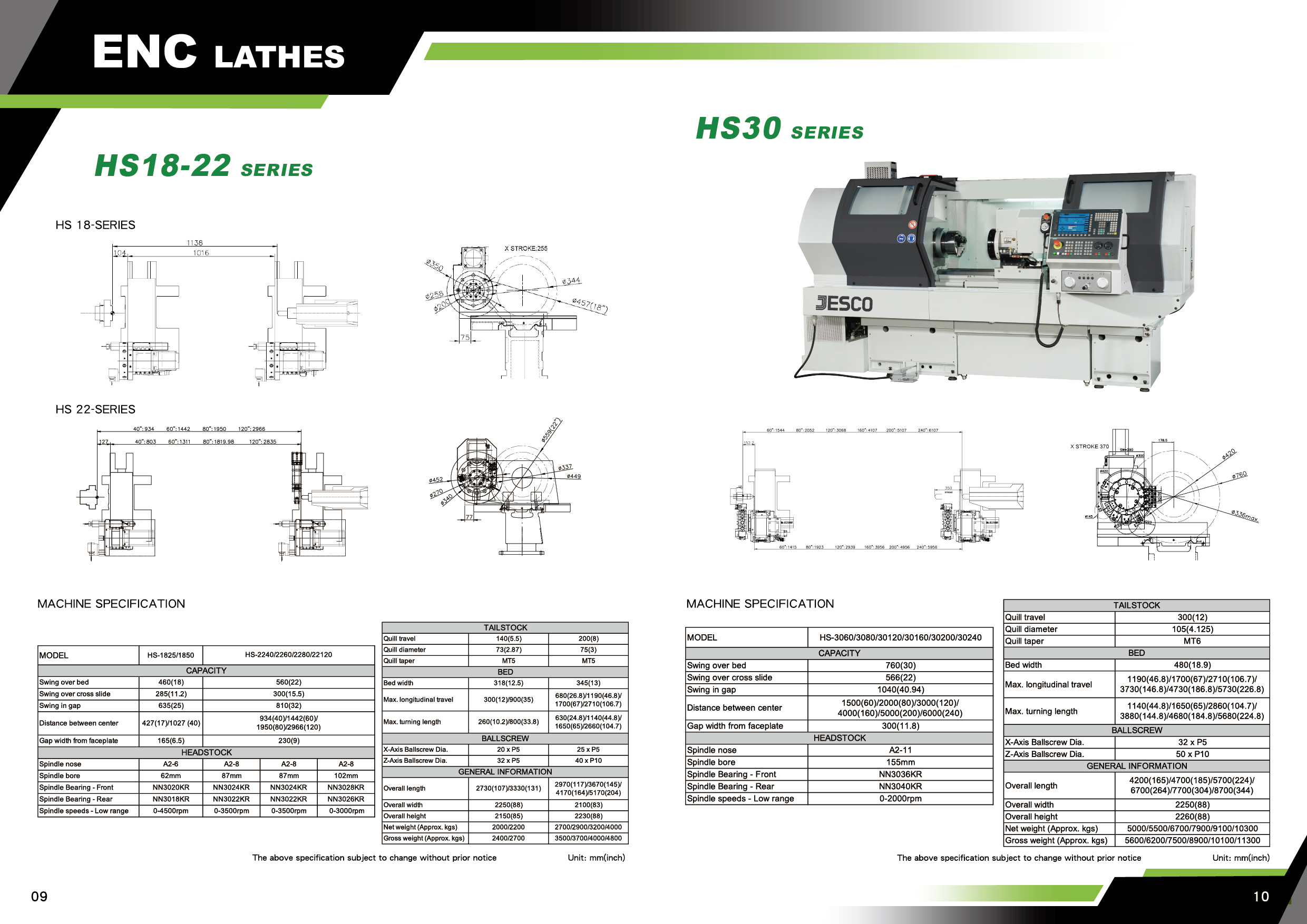

MODEL

3060 HS

3080 HS

30120 HS

30160 HS

30200 HS

30240 HS

Swing over bed

760(30)

Swing over cross slide

556(22)

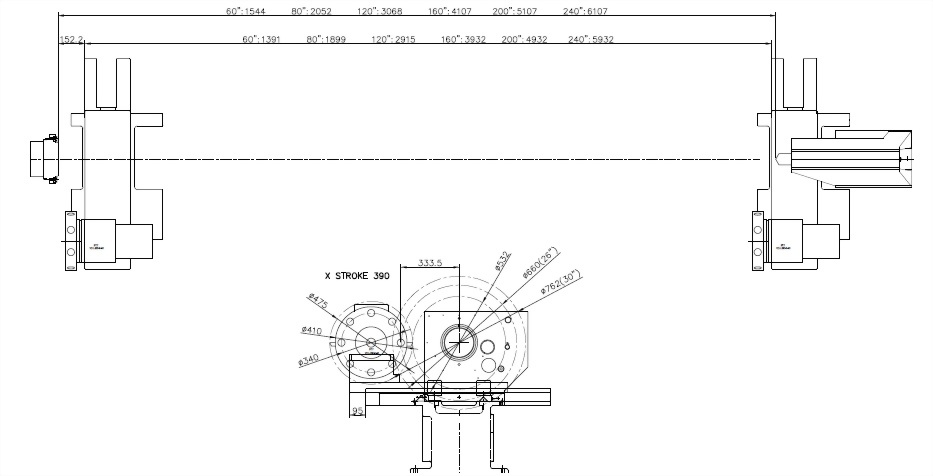

Distance between center

1500(60)

2000(80)

3000(120)

4000(160)

5000(200)

6000(240)

Spindle nose (camlock)

A2-11

Spindle bore

155mm

Tailstock spindle travel

300(12)

Tailstock barrel diameter

105(4.125)

Standard Equipment:
  •  Fagor 8060FL control system
  • Automatic lubrication pump for slideways and ballscrews
  • High pressure coolant system 1.5bar
  • Full enclosed end guard
  • Working light
  • Leveling blocks
  • Service tools & toolbox

Optional Equipment:

  • Fanuc 0i-TF control system
  • Siemens 828D control system
  • Manual type chuck
  • Hydraulic chuck
  • Elec.8-station turret (front mounting)
  • C-axis live turret
  • Hydraulic tailstock
  • Steady rest
  • Follow rest
  • Chain type chip conveyor
  • Special functions by consult
